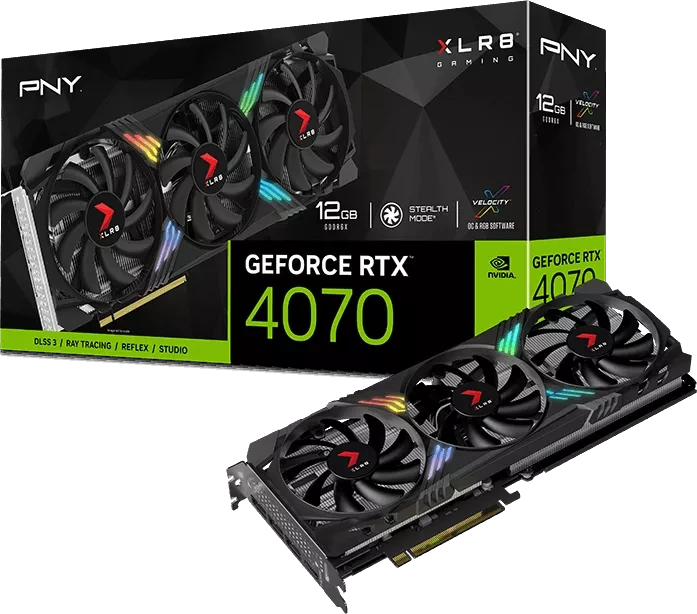

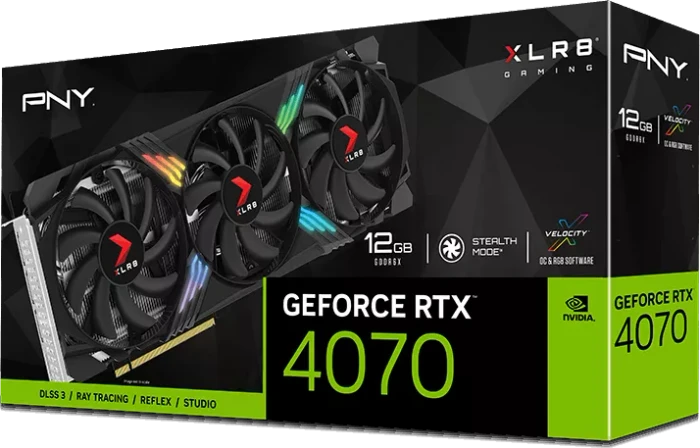

PNY GeForce RTX 4070 XLR8 Gaming Verto Epic-X RGB Triple Fan, 12GB GDDR6X, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4070
- Speicher
- 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
- Takt Basis
- 1920MHz
- Takt Boost
- 2475MHz
- Übertaktung
- -
- Kühlung
- 3x Axial-Lüfter mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 200W (NVIDIA), max. 200W (PNY)
- Stromanschlüsse
- 1x 8-Pin PCIe
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Beleuchtung (RGB), Backplate, AI-Beschleunigung, NVIDIA GeForce SFF-Ready
- Gesamthöhe
- Dual Slot
Bitte ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in PCIe)
XFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9ASUS Turbo Radeon AI PRO R9700, TURBO-AI-PRO-R9700-32G, 32GB GDDR6, HDMI, 3x DP
90YV0MN0-M0NA00 / 90YV0MN0-M0NM00ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFMSI GeForce RTX 5080 16G Shadow 3X OC, G5080-16S3C, 16GB GDDR7, HDMI, 3x DP
V531-003RASUS Prime Radeon RX 9070 XT White OC Edition, PRIME-RX9070XT-O16G-WHITE, 16GB GDDR6, HDMI, 3x DP
90YV0L75-M0NA00MSI GeForce RTX 5080 16G Gaming Trio OC, G5080-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-005RASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00MSI GeForce RTX 5090 32G Ventus 3X OC, G5090-32V3C, 32GB GDDR7, HDMI, 3x DP
V530-060R- Modell
- NVIDIA GeForce RTX 4070
- Speicher
- 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
- Takt Basis
- 1920MHz
- Takt Boost
- 2475MHz
- Übertaktung
- -
- Kühlung
- 3x Axial-Lüfter mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 200W (NVIDIA), max. 200W (PNY)
- Stromanschlüsse
- 1x 8-Pin PCIe
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Beleuchtung (RGB), Backplate, AI-Beschleunigung, NVIDIA GeForce SFF-Ready
- Gesamthöhe
- Dual Slot
- Abmessungen
- 305.1x119.4x40mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 233 TOPS (FP8), 116.5 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 466 TOPS (FP8), 233 TOPS (FP16)
- GPU-Rechenleistung
- 29.44 TFLOPS (FP16), 29.44 TFLOPS (FP32), 0.46 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD104 (AD104-250-A1/AD104-251-A1)
- Chip-Ausbau
- 76.7% aktive Recheneinheiten (46/60 SM)
- Chip-Konfiguration
- 46SM (5888SP/184TMU/64ROP), 46 RT-Cores, 184 Tensor-Cores, 36MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 294mm², monolithisch, 35.8 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 116.5 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4070 Ti
GeForce RTX 4070 SUPER
GeForce RTX 4070
RTX 4000 SFF Ada
RTX 4000 Ada
L4 - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 1x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 12.04.2023, Verkaufsstart: 13.04.2023, UVP: 599 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4070 - 12GB GDDR6X - Desktop
- Segment
- Consumer
- Letztes Preisupdate
- -
- Gelistet seit
- 2023-04-14, 11:03
-
Stand: 14.04.2023 .pdf [724.40 KB]
2 Bewertungen für PNY GeForce RTX 4070 XLR8 Gaming Verto Epic-X RGB Triple Fan, 12GB GDDR6X, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu PNY GeForce RTX 4070 XLR8 Gaming Verto Epic-X RGB Triple Fan, 12GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
techpowerup.com: PNY GeForce RTX 4070 XLR8 Review (translate)
Averaged over the 25 games in our test suite, at 1440p resolution, the PNY RTX 4070 XLR8 matches the NVIDIA RTX 4070 FE. While factory-overclocked RTX 4070s do gain a percent here and there, the differences are minimal. Compared to last generation's RTX 3070, the performance uplift is 28%—a relatively small gen-over-gen gain (RTX 4090: +64%, RTX 4080: +49%, RTX 4070 Ti: +44%). It is still a substantial improvement, especially when you consider other factors like DLSS 3 and efficiency. Compared to AMD's offerings, the RTX 4070 from MSI is slightly faster than the Radeon RX 6800 XT, and is close behind the RX 6900 XT. AMD hasn't released any Radeon RX 7000 graphics card competitive to the RTX 4070 yet, actually they haven't released any graphics card this year.
-
tech-critter.com: Review – PNY GeForce RTX 4070 12GB XLR8 Gaming VERTO EPIC-X RGB Triple Fan (translate)
Performance-wise, while the RTX 4070 Verto Epic-X can be seen performing similarly to the RTX 3080 on some occasions but most of the time, it is on par with the Founders Edition model. Some users might argue that getting a used RTX 3080 is probably a better idea as it is way cheaper now, and I don’t 100% disagree with that. As they say, your money your choice, but if we look at the bigger picture, I still find the RTX 4070 the better choice when it comes to features and power efficiency.
