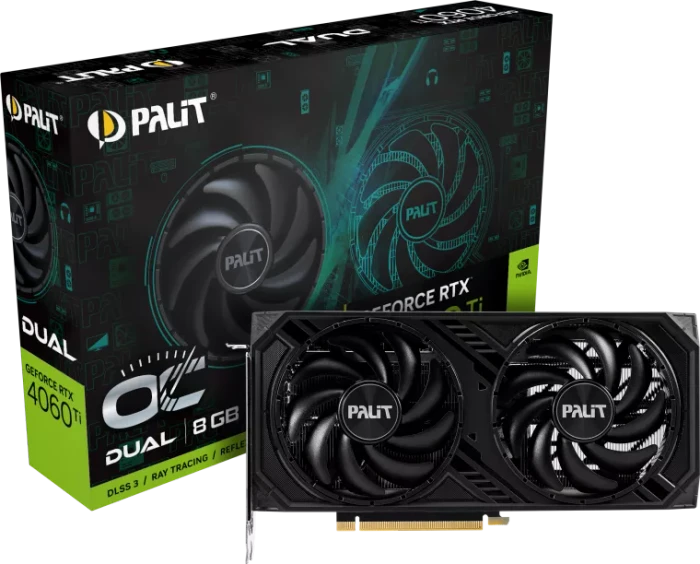

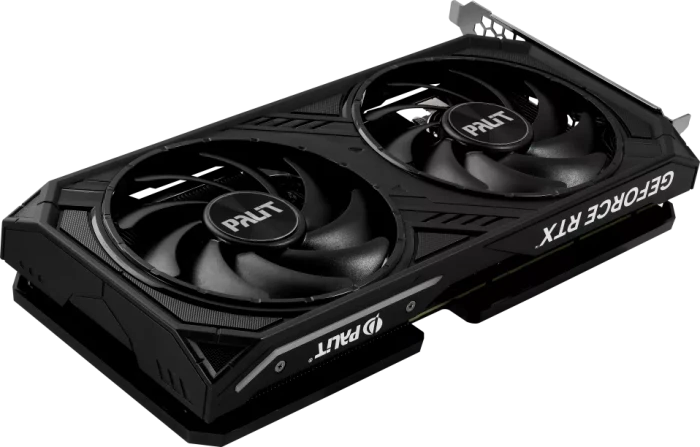

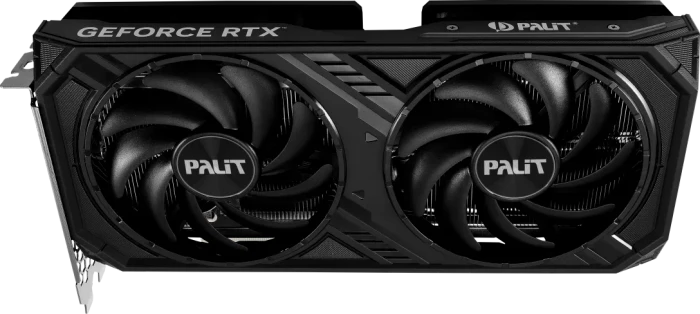

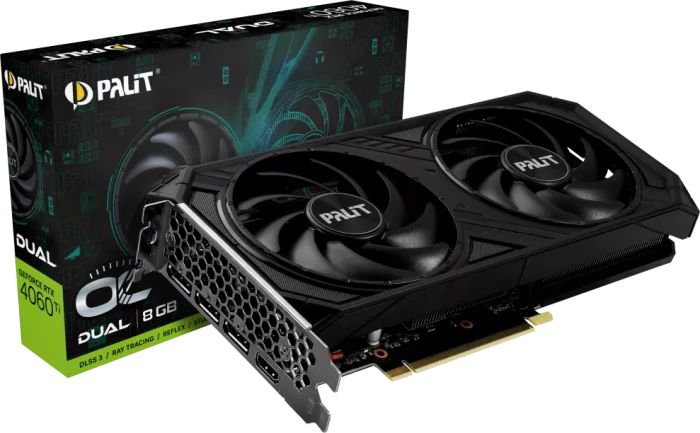

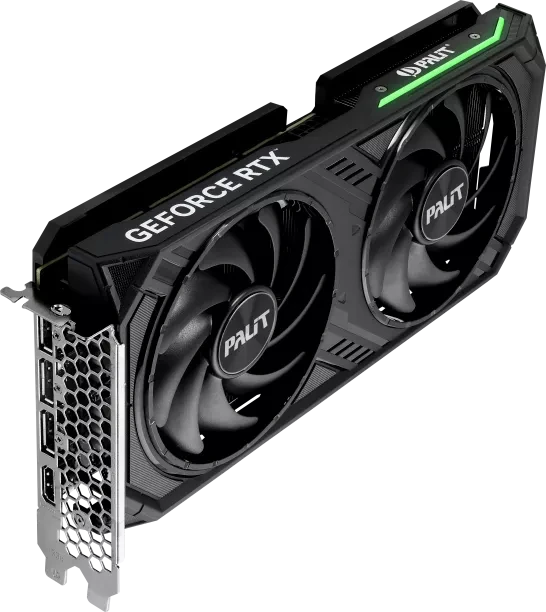

Palit GeForce RTX 4060 Ti Dual OC, 8GB GDDR6, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4060 Ti
- Speicher
- 8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
- Takt Basis
- 2310MHz
- Takt Boost
- 2685MHz
- Übertaktung
- +150MHz Boost

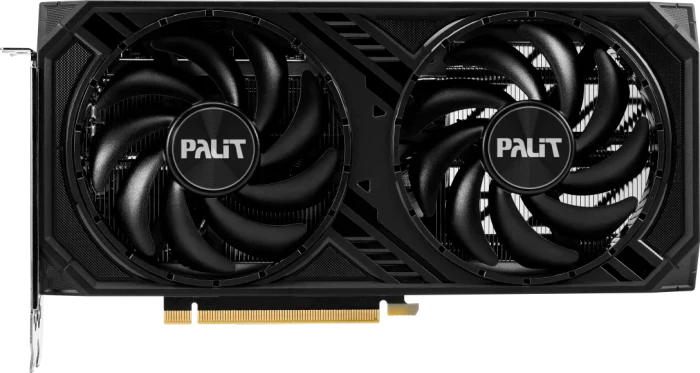

- Kühlung
- 2x Axial-Lüfter (95mm) mit 0dB-Zero-Fan-Modus (bis 60°C)
- TDP/TGP
- 160W (NVIDIA), max. 160W (Palit)

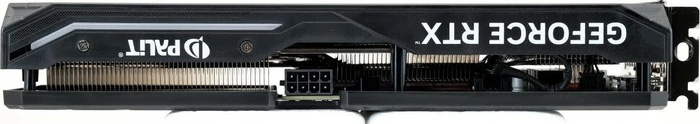

- Stromanschlüsse
- 1x 8-Pin PCIe

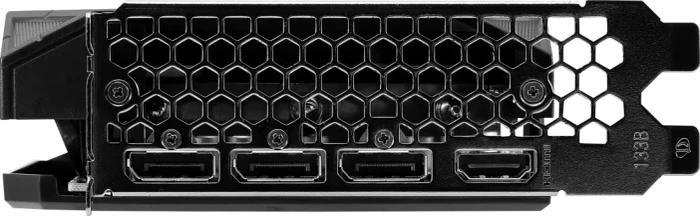

- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16 (x8)
- Besonderheiten

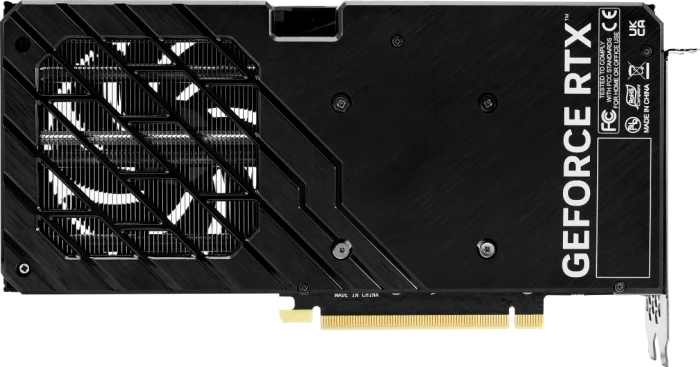

- Beleuchtung (RGB), Backplate, AI-Beschleunigung, NVIDIA GeForce SFF-Ready
- Gesamthöhe
- Dual Slot
Bitte ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in PCIe)
XFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9ASUS Turbo Radeon AI PRO R9700, TURBO-AI-PRO-R9700-32G, 32GB GDDR6, HDMI, 3x DP
90YV0MN0-M0NA00 / 90YV0MN0-M0NM00ASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFMSI GeForce RTX 5080 16G Shadow 3X OC, G5080-16S3C, 16GB GDDR7, HDMI, 3x DP
V531-003RASUS Prime Radeon RX 9070 XT White OC Edition, PRIME-RX9070XT-O16G-WHITE, 16GB GDDR6, HDMI, 3x DP
90YV0L75-M0NA00MSI GeForce RTX 5080 16G Gaming Trio OC, G5080-16GTC, 16GB GDDR7, HDMI, 3x DP
V531-005RASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00MSI GeForce RTX 5090 32G Ventus 3X OC, G5090-32V3C, 32GB GDDR7, HDMI, 3x DP
V530-060R- Modell
- NVIDIA GeForce RTX 4060 Ti
- Speicher
- 8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
- Takt Basis
- 2310MHz
- Takt Boost
- 2685MHz
- Übertaktung
- +150MHz Boost
- Kühlung
- 2x Axial-Lüfter (95mm) mit 0dB-Zero-Fan-Modus (bis 60°C)
- TDP/TGP
- 160W (NVIDIA), max. 160W (Palit)
- Stromanschlüsse
- 1x 8-Pin PCIe
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16 (x8)
- Besonderheiten
- Beleuchtung (RGB), Backplate, AI-Beschleunigung, NVIDIA GeForce SFF-Ready
- Gesamthöhe
- Dual Slot
- Abmessungen
- 249.9x123.5x40.1mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 176.5 TOPS (FP8), 88.25 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 353 TOPS (FP8), 176.5 TOPS (FP16)
- GPU-Rechenleistung
- 23.50 TFLOPS (FP16), 23.50 TFLOPS (FP32), 0.37 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD106 (AD106-350-A1)
- Chip-Ausbau
- 94.4% aktive Recheneinheiten (34/36 SM)
- Chip-Konfiguration
- 34SM (4352SP/136TMU/48ROP), 34 RT-Cores, 136 Tensor-Cores, 32MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 188mm², monolithisch, 22.9 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 88.25 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4060 Ti (exklusiv)
- API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 1x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 18.05.2023, Verkaufsstart: 24.05.2023, UVP: 399 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4060 Ti - 8GB GDDR6 - Desktop
- Segment
- Consumer
- Letztes Preisupdate
- -
- Gelistet seit
- 2023-05-22, 08:29
Bewertung für Palit GeForce RTX 4060 Ti Dual OC, 8GB GDDR6, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu Palit GeForce RTX 4060 Ti Dual OC, 8GB GDDR6, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
techpowerup.com: Palit GeForce RTX 4060 Ti Dual OC Review (translate)
Palit GeForce RTX 4060 Ti Dual OC is the company's affordable yet factory-overclocked custom-design rendition of NVIDIA's latest performance segment graphics card. The Dual series of graphics cards form Palit's most affordable product offerings in any series, and the RTX 4060 Ti Dual OC in this review has a sibling that sticks to NVIDIA-reference clock speeds, although we're not sure if it also sells at the $399 MSRP. The Dual OC is priced at a "small premium," Palit didn't give us any exact number. If you're wondering why you're seeing many custom-design RTX 4060 Ti reviews being published today (May 24), it's because NVIDIA gave the cards that sell at its MSRP a 1-day advantage with the review postings. The new NVIDIA GeForce RTX 4060 Ti is designed to help NVIDIA consolidate in the crucial performance segment, with its starting price of $399 that's unchanged from that of the RTX 3060 Ti. It is designed for 1080p AAA gaming with nearly maxed-out settings, including ray tracing, while also being capable of 1440p if you know your way around game settings, or can get GeForce Experience to find the right ones for you. The GeForce RTX 4060 Ti is among a 3-part RTX 4060 series NVIDIA is planning for at three distinct price points. The RTX 4060 Ti launching today has a $399 MSRP, and comes with an 8 GB VRAM size. Its 16 GB variant bound for July is priced at $500, and the most affordable RTX 4060 at $299. All three have essentially the same use-case of 1080p gaming at varying grades of eye-candy.
