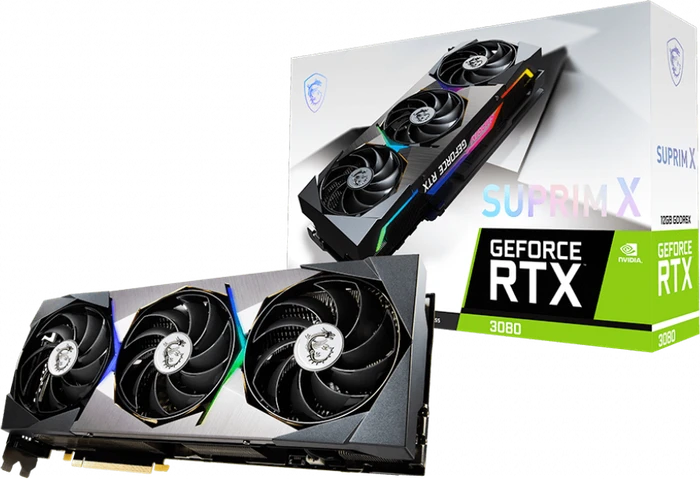

MSI GeForce RTX 3080 Suprim X 12G LHR, 12GB GDDR6X, HDMI, 3x DP

V389-408R
Testbewertung: 70
aus 1 Testbericht
Info beim Hersteller
Modell
NVIDIA GeForce RTX 3080
Speicher
12GB GDDR6X, 384bit, 19Gbps, 1188MHz, 912GB/​s
Takt Basis
1260MHz (Standard-Profil), 1260MHz (OC-Profil)
Takt Boost
1890MHz (Standard-Profil), 1905MHz (OC-Profil)
Übertaktung
+195MHz Boost (OC-Profil), +180MHz Boost (Standard-Profil)
Kühlung
3x Axial-Lüfter (100mm) mit 0dB-Zero-Fan-Modus
TDP/TGP
350W (NVIDIA), max. 390W (MSI)
Stromanschlüsse
3x 8-Pin PCIe
Anschlüsse
1x HDMI 2.1, 3x DisplayPort 1.4a
Anbindung
PCIe 4.0 x16
Besonderheiten
mit LHR (Lite Hash Rate), Beleuchtung (RGB), Backplate, AI-Beschleunigung, Taktprofile (Gaming Mode/​OC Mode)
Gesamthöhe
Triple Slot
Anbieter aus:
nach:
Anbieter
Händlerbewertung
Verfügbarkeit / Versandkosten*
Produktbezeichnung des Händlers
Es gibt derzeit keine Anbieter für dieses Produkt (mit diesen Filterkriterien).
Bitte ggf. die Filterkriterien ändern.

Ähnliche Produkte (Top-10 in PCIe)

Modell
NVIDIA GeForce RTX 3080
Speicher
12GB GDDR6X, 384bit, 19Gbps, 1188MHz, 912GB/​s
Takt Basis
1260MHz (Standard-Profil), 1260MHz (OC-Profil)
Takt Boost
1890MHz (Standard-Profil), 1905MHz (OC-Profil)
Übertaktung
+195MHz Boost (OC-Profil), +180MHz Boost (Standard-Profil)
Kühlung
3x Axial-Lüfter (100mm) mit 0dB-Zero-Fan-Modus
TDP/TGP
350W (NVIDIA), max. 390W (MSI)
Stromanschlüsse
3x 8-Pin PCIe
Anschlüsse
1x HDMI 2.1, 3x DisplayPort 1.4a
Anbindung
PCIe 4.0 x16
Besonderheiten
mit LHR (Lite Hash Rate), Beleuchtung (RGB), Backplate, AI-Beschleunigung, Taktprofile (Gaming Mode/​OC Mode)
Gesamthöhe
Triple Slot
Abmessungen
336x140x61mm (LxBxH)
Bauform
PCIe-Karte (full height)
Slotblende
full height
AI-Rechenleistung (dense)
238 TOPS (FP16)
AI-Rechenleistung (sparse)
476 TOPS (FP16)
GPU-Rechenleistung
34.05 TFLOPS (FP16), 34.05 TFLOPS (FP32), 0.53 TFLOPS (FP64)
Chip-Daten
Chip-Architektur
NVIDIA Ampere (ab 2020/​Q3)
Chip-Bezeichnung
GA102 (GA102-220-A1)
Chip-Ausbau
83.3% aktive Recheneinheiten (70/​84 SM)
Chip-Konfiguration
70SM (8960SP/​280TMU/​96ROP), 70 RT-Cores, 280 Tensor-Cores, 6MiB L2-Cache
Chip-Fertigung
Samsung 8nm (8nm)
Chip-Größe
628mm², monolithisch, 28.3 Mrd. Transistoren
Chip-Funktionen
Raytracing (2nd Gen NVIDIA RTX), NVIDIA Tensor (3rd Gen, 238 TOPS), HDCP 2.3
Chip-Verwendung
GeForce RTX 3090 Ti
GeForce RTX 3090
GeForce RTX 3080 Ti
GeForce RTX 3080
RTX A6000
RTX A5500
RTX A5000
RTX A4500
A40
A10
API-Unterstützung
DirectX 12 Ultimate (12_2) /​ CUDA 8.6 /​ Vulkan 1.3 /​ OpenCL 3.0 /​ OpenGL 4.6 /​ Shader Model 6.7
Transcoding-Engine
1x NVENC (7th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
Encoding
H.265 (4K YUV 4:2:0 /​ 4K YUV 4:4:4 /​ 4K Lossless /​ 8K /​ HEVC 10bit support /​ HEVC B Frame support), H.264 (YUV 4:2:0 /​ YUV 4:4:4 /​ Lossless)
Decoding
AV1 (8bit /​ 10bit), H.265 (8bit 4:2:0 /​ 10bit 4:2:0 /​ 12bit 4:2:0 /​ 8bit 4:4:4 /​ 10bit 4:4:4 /​ 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit /​ 10bit /​ 12bit), VP8, VC-1, MPEG-2, MPEG-1
Multi-GPU-Anbindung
-
Veröffentlichung (Serie)
11.01.2022, UVP: 799 USD (NVIDIA)
Grafik
NVIDIA GeForce RTX 3080 - 12GB GDDR6X - Desktop
Segment
Consumer
Letztes Preisupdate
-
Gelistet seit
2022-01-11, 21:11
Laden ...

Bewertung für MSI GeForce RTX 3080 Suprim X 12G LHR, 12GB GDDR6X, HDMI, 3x DP

Teilen Sie uns Ihre Meinung zu MSI GeForce RTX 3080 Suprim X 12G LHR, 12GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.
Laden ...
  • englisch
    tomshardware.com: MSI GeForce RTX 3080 12GB Suprim X Review: Ti Fighter (translate)
    Testbewertung:
    Testbewertung: 70
    Originalwertung: 3.5/5

    The MSI GeForce RTX 3080 12GB Suprim X managed to effectively tie the RTX 3080 Ti performance in most situations, thanks to its healthy factory overclock. Unfortunately, retail pricing looks equally high, which eliminates the one potential draw. It ends up as one more RTX 30-series model in an already crowded landscape, at a still-inflated price.

  • deutsch
    computerbase.de: GeForce RTX 3080 12 GB im Test: Die Benchmarks zur neuen RTX 3080 fehlten hier noch

    In Nvidias High-End-Segment ist es eng: Unterhalb der GeForce RTX 3090, zwischen der GeForce RTX 3080 und der 3080 Ti, platziert sich seit Januar noch die neue 12-GB-Version der GeForce RTX 3080. Ein Test der GeForce RTX 3080 mit 12 GB fehlte auf ComputerBase noch. Mit der Suprim X von MSI holt die Redaktion das jetzt nach.

  • deutsch
    hardwareluxx.de: Teurer Neueinstieg für die RTX 3080: MSI GeForce RTX 3080 12G Suprim X im Test

    Ohne Vorab-Treiber und somit ohne Review am Starttag führte NVIDIA vor wenigen Tagen die GeForce RTX 3080 mit 12 GB anstatt wie bisher 10 GB an Grafikspeicher ein. Neben dem größeren Speicher gibt es auch noch ein paar zusätzliche Funktionseinheiten und schon ist eine Karte fertig, die für NVIDIA vor allem dazu da ist, eine höhere UVP zu rechtfertigen. Doch zur Einschätzung des Preises kommen wir noch. Zunächst einmal wollen wir uns ein solches Modell in Form der MSI GeForce RTX 3080 12G Suprim X genauer anschauen.

  • englisch
    techpowerup.com: MSI GeForce RTX 3080 Suprim X 12 GB Review (translate)

    I'm giving our Recommended award to the RTX 3080 Suprim X because it's a fantastic custom-design with an excellent cooler, good factory overclock, large power limit increase, and good fan settings (in quiet mode). However, it was a close call because the card is definitely not for everyone at that price point; it's just SO much money. But if you're in the market for a high-end graphics card, it's definitely a product worth considering.

  • englisch
    tweaktown.com: MSI GeForce RTX 3080 SUPRIM X 12G LHR Review (translate)

    MSI's custom GeForce RTX 3080 SUPRIM X 12G LHR is a force to be reckoned with, keeps up with the RTX 3080 Ti at stock, and beats both the RTX 3080 Ti + RTX 3090 with some OC. rnrnThe GA102 GPU with more CUDA cores + 12GB of VRAM + 384-bit memory bus + MSI SUPRIM X style = winning package.

  • englisch
    guru3d.com: MSI GeForce RTX 3080 Suprim X 12G review (translate)

    If memory serves me right, the original 3080 was introduced in September 2020; and we're now in January 2022. With the 3080 reconfigured to 12GB, a handful more shaders available, and a wider memory bus NVIDIA seems to be buying time. In that respect, we're left wondering what this release is truly about? This release has the appearance of a product released to buy additional time for the next generation of competing graphics cards. Which makes sense. We believe NVIDIA is observing the GPU releases from Intel and AMD. Reorganizing, reshuffling, and repositioning items to achieve optimal performance is what they're doing. Also, fabbing GPUs these days takes money and time, the world is still facing a chip shortage. So yeah, time is trivial here. Back to the product though. Without a doubt, we like the GeForce RTX 3080 12GB for what it is; and the MSI SUPRIM X in particular. Indeed, MSI has a wild card with the SUPRIM X. Despite the prophetic moniker, this is a graphics card that exudes quality at that hardware level; the hardware is outstanding. The aesthetics are fantastic; with a metal backplate, a freshly designed cooler, and dual BIOS, is the price premium justified? To be honest, we have some reservations about that. However, this is the pinnacle of over-engineering. Bear in mind that all cards are roughly in the same performance range, resulting in a paltry 5% increase in performance over a 3080 12GB FE edition (if it would exist) for this reshuffled and beefed-up offering. In general, I believe that everyone would concur with me; we would all love to acquire a 3080 12GB. This is an excellent close to an enthusiast-class graphics card that is extremely well-balanced. Essentially, it's a 3090 with half the RAM and configuration changes. I'm quite pleased with the 12GB RAM, but 10 GB is just as fine as well. In the year 2022, 12GB is a well-balanced number though. You'll be considerably ahead of the competition in the top performance regions, and even at Ultra HD, you can enable Raytracing, when combined with DLSS the performance can be dazzling. MSI's offering of the GeForce RTX 3080 12GB works admirably on all fronts, including performance, cooling, and acoustics, as a complete package. Ultimately, the choice comes down to availability and... cost at the end-user level. If etailers keep their pricing in check, this card will be a hit—and what a card it is. But yeah, a little puzzling it is to see as to why NVIDIA has released this series in a very saturated product stack. Only if you can locate it at a reasonable price, it is recommended.

  • Serienübergreifende Testberichte
  • deutsch
  • deutsch
  • englisch
  • englisch
