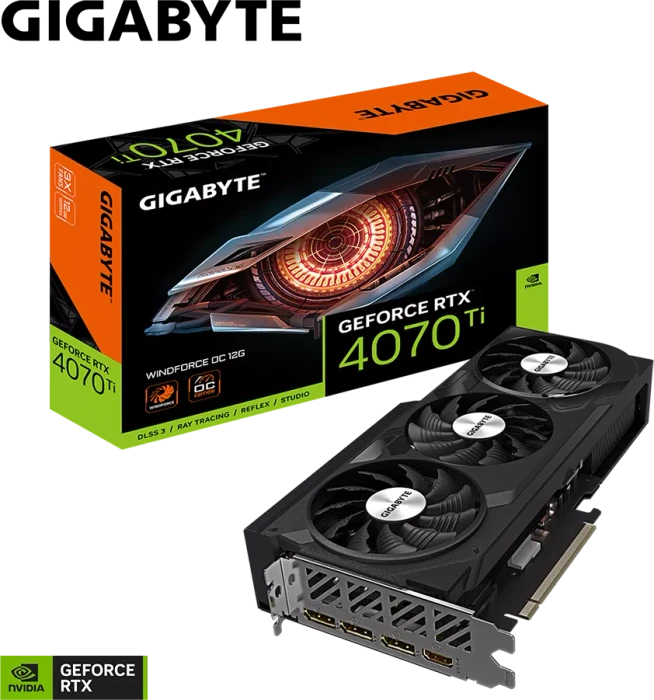

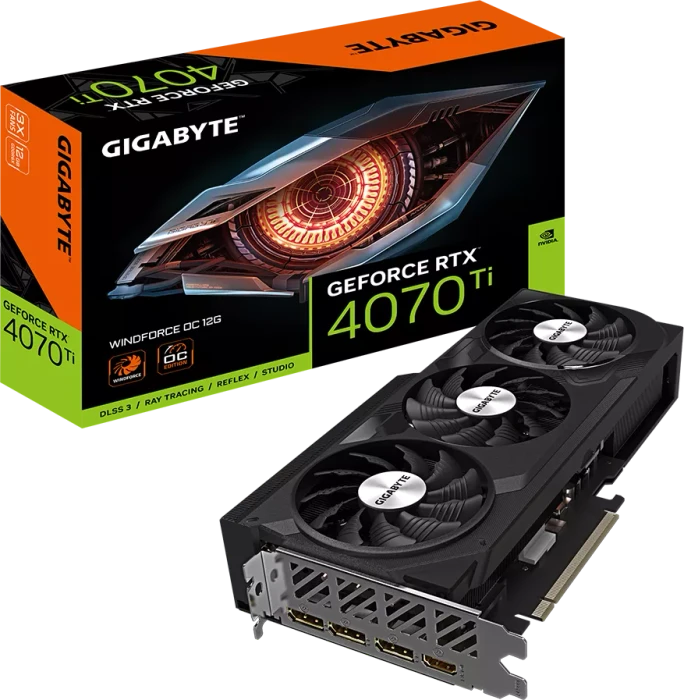

GIGABYTE GeForce RTX 4070 Ti Windforce OC 12G, 12GB GDDR6X, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4070 Ti
- Speicher
- 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
- Takt Basis
- 2310MHz
- Takt Boost
- 2625MHz
- Übertaktung
- +15MHz Boost
- Kühlung
- 3x Axial-Lüfter (80mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 2x 8-Pin PCIe)
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung, NVIDIA GeForce SFF-Ready
- Gesamthöhe
- Triple Slot
Bitte ggf. die Filterkriterien ändern.
Weitere Varianten (Top-10)
GIGABYTE GeForce RTX 4070 Ti Gaming OC V2 12G, 12GB GDDR6X, HDMI, 3x DP
GV-N407TGAMING OCV2-12GDGIGABYTE GeForce RTX 4070 Ti Eagle OC 12G (Rev. 2.0), 12GB GDDR6X, HDMI, 3x DP
GV-N407TEAGLE-12GD 2.0GIGABYTE GeForce RTX 4070 Ti Windforce 12G, 12GB GDDR6X, HDMI, 3x DP
GV-N407TWF3-12GDGIGABYTE AORUS GeForce RTX 4070 Ti Xtreme Waterforce WB 12G, 12GB GDDR6X, HDMI, 3x DP
GV-N407TAORUSX WB-12GDGIGABYTE AORUS GeForce RTX 4070 Ti Xtreme Waterforce 12G, 12GB GDDR6X, HDMI, 3x DP
GV-N407TAORUSX W-12GDGIGABYTE GeForce RTX 4070 Ti Aero OC V2 12G, 12GB GDDR6X, HDMI, 3x DP
GV-N407TAERO OCV2-12GDGIGABYTE GeForce RTX 4070 Ti Eagle OC 12G (Rev. 2.0), 12GB GDDR6X, HDMI, 3x DP
GV-N407TEAGLE OC-12GD 2.0GIGABYTE GeForce RTX 4070 Ti Gaming 12G, 12GB GDDR6X, HDMI, 3x DP
GV-N407TGAMING-12GDGIGABYTE GeForce RTX 4070 Ti Aero OC 12G, 12GB GDDR6X, HDMI, 3x DP
GV-N407TAERO OC-12GDÄhnliche Produkte (Top-10 in PCIe)
ASUS Prime Radeon RX 9070 XT OC, PRIME-RX9070XT-O16G, 16GB GDDR6, HDMI, 3x DP
90YV0L71-M0NA00ASUS Dual Radeon RX 9060 XT, DUAL-RX9060XT-16G, 16GB GDDR6, HDMI, 2x DP
90YV0LG2-M0NA00 / 90YV0LG2-M0AA00XFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9GIGABYTE Radeon AI PRO R9700 AI TOP 32G, 32GB GDDR6, HDMI, 3x DP
GV-R9700AI TOP-32GDASUS ROG Astral GeForce RTX 5090 OC, ROG-ASTRAL-RTX5090-O32G-GAMING, 32GB GDDR7, 2x HDMI, 3x DP
90YV0LW0-M0NA00ASUS Turbo Radeon AI PRO R9700, TURBO-AI-PRO-R9700-32G, 32GB GDDR6, HDMI, 3x DP
90YV0MN0-M0NA00 / 90YV0MN0-M0NM00ASRock Radeon RX 9070 Challenger 16GB, RX9070 CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA5NZZ-00UANFPowerColor Hellhound Radeon RX 9060 XT, 16GB GDDR6, HDMI, 2x DP
RX9060XT 16G-L/OCASUS Dual GeForce RTX 5060 Ti OC, DUAL-RTX5060TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MH0-M0NA00Zotac Gaming GeForce RTX 5080 SOLID CORE OC, 16GB GDDR7, HDMI, 3x DP
ZT-B50800J2-10P- Modell
- NVIDIA GeForce RTX 4070 Ti
- Speicher
- 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
- Takt Basis
- 2310MHz
- Takt Boost
- 2625MHz
- Übertaktung
- +15MHz Boost
- Kühlung
- 3x Axial-Lüfter (80mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 2x 8-Pin PCIe)
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Backplate, AI-Beschleunigung, NVIDIA GeForce SFF-Ready
- Gesamthöhe
- Triple Slot
- Abmessungen
- 261x126x50mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 320.5 TOPS (FP8), 160.25 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 641 TOPS (FP8), 320.5 TOPS (FP16)
- GPU-Rechenleistung
- 39.94 TFLOPS (FP16), 39.94 TFLOPS (FP32), 0.62 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD104 (AD104-400-A1)
- Chip-Ausbau
- Vollausbau (60/60 SM)
- Chip-Konfiguration
- 60SM (7680SP/240TMU/80ROP), 60 RT-Cores, 240 Tensor-Cores, 48MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 294mm², monolithisch, 35.8 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 160.25 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4070 Ti
GeForce RTX 4070 SUPER
GeForce RTX 4070
RTX 4000 SFF Ada
RTX 4000 Ada
L4 - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 2x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 03.01.2023, Verkaufsstart: 05.01.2023, UVP: 799 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4070 Ti - 12GB GDDR6X - Desktop
- Letztes Preisupdate
- -
- Gelistet seit
- 2023-04-18, 15:27
Bewertung für GIGABYTE GeForce RTX 4070 Ti Windforce OC 12G, 12GB GDDR6X, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu GIGABYTE GeForce RTX 4070 Ti Windforce OC 12G, 12GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
tech-critter.com: Review – Gigabyte RTX 4070 Ti Gaming OC 12G (translate)
When it comes to gaming performance, the RTX 4070 Ti is easily better than the RTX 3090 despite having a lower bandwidth and VRAM than the latter. So unless you are really going to utilize all of the bandwidth and that 24GB worth of VRAM that is very unlikely to happen for most gaming use cases, I’d say the RTX 4070 Ti has more to offer in terms of features, DLSS 3 especially if you’re all in for the ray tracing effects. Of course, not everyone is into these fancy visuals and AI-assisted features but like it or not, we cannot overlook the fact that the feature is here to stay and will continue to improve in the future. If you’re open to experiencing it yourself, the RTX 4070 Ti is probably worth your consideration I’d say.
-
eteknix.com: NVIDIA RTX 4070 Ti Review (translate)
Today sees the launch of the RTX 4080 12GB. Sorry, 4070 Ti 12GB. A card that has had a LOT of bad press, even before it launched, and we’ll be going through exactly how it performs today. It’s also worth addressing the elephant in the room. This card, the 4070 Ti was the card that never was, or never should have been or kind of was, but then wasn’t, and then was something else. It was a mess from its first inception, and for one reason. Based on consumer feedback, and the fact that this was going to be labelled as an RTX 4080 with 12GB of GDDR6X memory, the general consensus was that the gaming community weren’t happy to have the wool pulled over their eyes, so NVIDIA went back to the drawing board and came up with the same product, but now branded as a 4070 Ti. The card it kind of should have always been and for one big key reason; the GPU core itself.
-
techpowerup.com: Gigabyte GeForce RTX 4070 Ti Gaming OC Review (translate)
Gigabyte GeForce RTX 4070 Ti Gaming OC graphics card is the company's value custom-design implementation of NVIDIA's latest performance-segment graphics card from its RTX 40-series "Ada Lovelace" generation. The RTX 4070 Ti is designed to strike a price-performance sweetspot at a starting price of $800 (NVIDIA baseline), while being able to play games at resolutions as high as 4K Ultra HD, where you can benefit from features such as DLSS 3 frame-generation, to nearly max-out the eye-candy of your game. The Gaming OC brand from Gigabyte comes under the main marquee, positioned a notch below the flashy and feature-rich AORUS Gaming products by the company. These cards are designed to cover all the essentials of the GPU for gamers that just want to install the card and get gaming, which is why it is priced close to NVIDIA's baseline price.
-
guru3d.com: Gigabyte GeForce RTX 4070 Ti Gaming OC review (translate)
The third graphics card from the ADA Lovelace generation is here; join us as we review the mighty GeForce RTX 4070 Ti 12GB. Yeah, that would be the 4080 12GB that NVIDIA cancelled.
-
overclock3d.net: Gigabyte OC Gaming 12G RTX 4070 Ti Review (translate)
For most of us the Nvidia graphics card line up runs as follows. The x060 is for those with tight budgets who play less demanding games or don't mind running on medium settings. The x070 is found in the rigs of enthusiastic gamers still with fiscal limitations. The x080 is for the hardcore gamer and the x090 is designed for those who will accept nothing but the best. Then, six months later, the Ti models of those cards appear which refine everything to give extra performance just before the next generation appears. Usually that next generation moves everything up a level, so the RTX 3070 Ti matched the RTX 2080 Ti, and so on. The RTX 4070 Ti doesn't give a fig for such established conventions, and will prove to be a hugely popular GPU if you want some high end gaming performance.
- Serienübergreifende Testberichte
-
-
-
-
-
-
-
-
-
-
-
