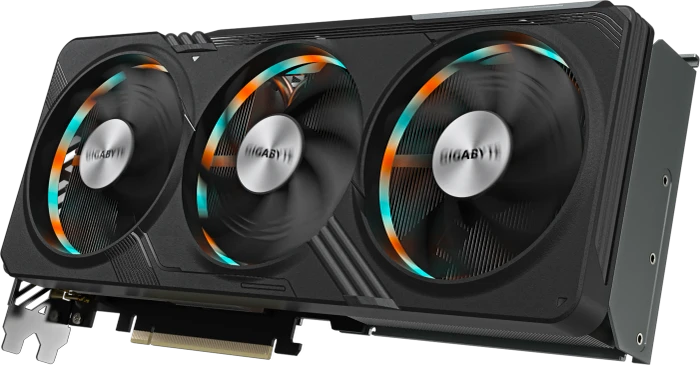

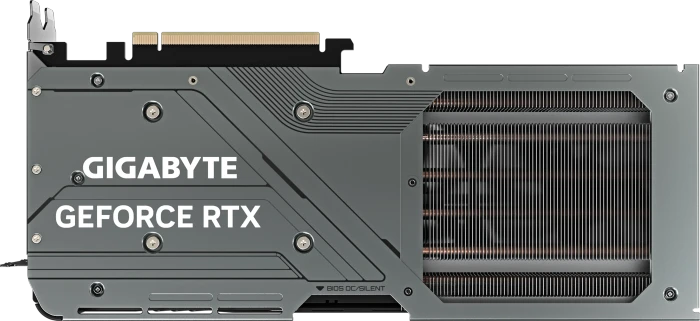

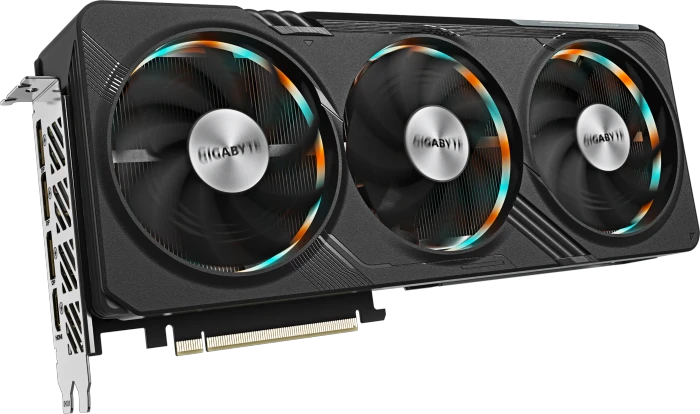

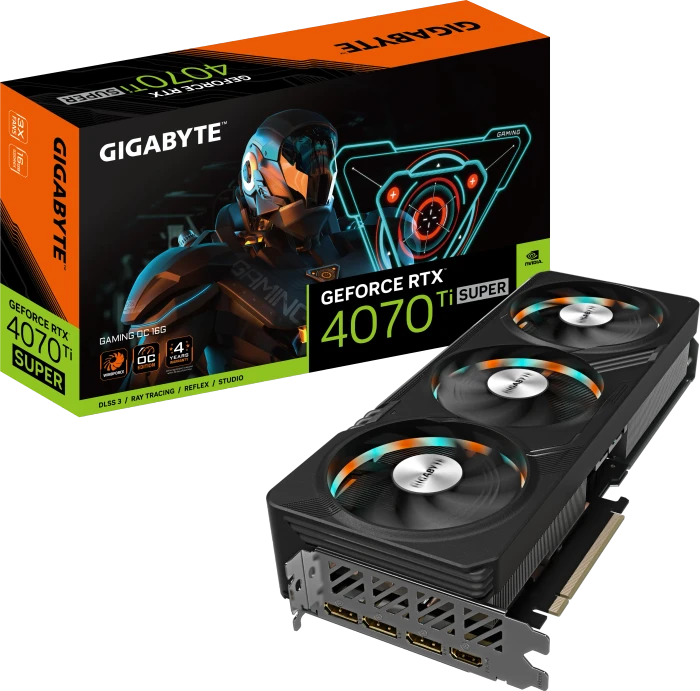

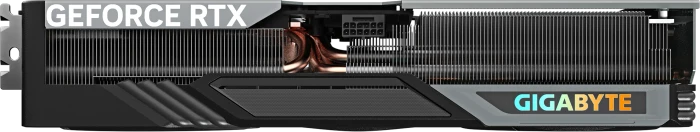

GIGABYTE GeForce RTX 4070 Ti SUPER Gaming OC 16G, 16GB GDDR6X, HDMI, 3x DP
- Modell
- NVIDIA GeForce RTX 4070 Ti SUPER
- Speicher
- 16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/s
- Takt Basis
- 2340MHz
- Takt Boost
- 2655MHz
- Übertaktung
- +45MHz Boost
- Kühlung
- 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 3x 8-Pin PCIe)
- Anschlüsse

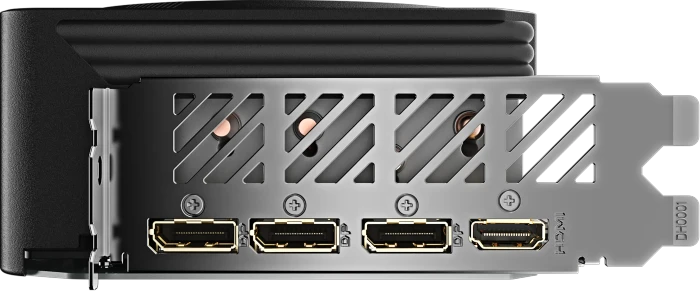

- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Beleuchtung (RGB, Lüfter RGB beleuchtet), Backplate, Dual BIOS Switch, AI-Beschleunigung, Grafikkarten-Halterung
- Gesamthöhe
- Triple Slot
Bitte ggf. die Filterkriterien ändern.
Ähnliche Produkte (Top-10 in PCIe)
PowerColor Reaper Radeon RX 9070, 16GB GDDR6, HDMI, 3x DP
RX9070 16G-AXFX Swift Radeon RX 9070 XT Triple Fan Gaming Edition, 16GB GDDR6, HDMI, 3x DP
RX-97TSWF3B9ASUS GeForce RTX 5080 Noctua OC Edition, RTX5080-O16G-NOCTUA, 16GB GDDR7, 2x HDMI, 3x DP
90YV0M32-M0NA00ASUS Prime GeForce RTX 5070 Ti OC, PRIME-RTX5070TI-O16G, 16GB GDDR7, HDMI, 3x DP
90YV0MF0-M0NA00XFX Mercury Radeon RX 9070 XT OC Gaming Edition with RGB, 16GB GDDR6, HDMI, 3x DP
RX-97TRGBBB9MSI GeForce RTX 5080 16G Shadow 3X OC, G5080-16S3C, 16GB GDDR7, HDMI, 3x DP
V531-003RASRock Radeon RX 9070 XT Challenger 16GB, RX9070XT CL 16G, 16GB GDDR6, HDMI, 3x DP
90-GA61ZZ-00UANFASUS Prime Radeon RX 9070 XT OC, PRIME-RX9070XT-O16G, 16GB GDDR6, HDMI, 3x DP
90YV0L71-M0NA00Acer Nitro Radeon RX 9070 XT OC, 16GB GDDR6, HDMI, 3x DP
DP.Z4DWW.P01- Modell
- NVIDIA GeForce RTX 4070 Ti SUPER
- Speicher
- 16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/s
- Takt Basis
- 2340MHz
- Takt Boost
- 2655MHz
- Übertaktung
- +45MHz Boost
- Kühlung
- 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP
- 285W (NVIDIA)
- Stromanschlüsse
- 1x 12VHPWR (via Adapter: 3x 8-Pin PCIe)
- Anschlüsse
- 1x HDMI 2.1a, 3x DisplayPort 1.4a
- Anbindung
- PCIe 4.0 x16
- Besonderheiten
- Beleuchtung (RGB, Lüfter RGB beleuchtet), Backplate, Dual BIOS Switch, AI-Beschleunigung, Grafikkarten-Halterung
- Gesamthöhe
- Triple Slot
- Abmessungen
- 300x130x57.6mm (LxBxH)
- Bauform
- PCIe-Karte (full height)
- Slotblende
- full height
- AI-Rechenleistung (dense)
- 353 TOPS (FP8), 176.5 TOPS (FP16)
- AI-Rechenleistung (sparse)
- 706 TOPS (FP8), 353 TOPS (FP16)
- GPU-Rechenleistung
- 45.62 TFLOPS (FP16), 45.62 TFLOPS (FP32), 0.71 TFLOPS (FP64)
- Chip-Daten
- Chip-Architektur
- NVIDIA Ada Lovelace (ab 2022/Q3)
- Chip-Bezeichnung
- AD103 (AD103-275-A1)
- Chip-Ausbau
- 82.5% aktive Recheneinheiten (66/80 SM)
- Chip-Konfiguration
- 66SM (8448SP/264TMU/96ROP), 66 RT-Cores, 264 Tensor-Cores, 48MiB L2-Cache
- Chip-Fertigung
- TSMC N5P [NVIDIA 4N] (5nm)
- Chip-Größe
- 379mm², monolithisch, 45.9 Mrd. Transistoren
- Chip-Funktionen
- Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen, 176.5 TOPS), HDCP 2.3
- Chip-Verwendung
- GeForce RTX 4080 SUPER
GeForce RTX 4080
GeForce RTX 4070 Ti SUPER
RTX 4500 Ada - API-Unterstützung
- DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
- Transcoding-Engine
- 2x NVENC (8th Gen, max. Sessions: 8), 1x NVDEC (5th Gen), Info
- Encoding
- AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding
- AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264 (8bit 4:2:0), VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung
- -
- Veröffentlichung (Serie)
- 08.01.2024, Verkaufsstart: 24.01.2024, UVP: 799 USD (NVIDIA)
- Grafik
- NVIDIA GeForce RTX 4070 Ti SUPER - 16GB GDDR6X - Desktop
- Segment
- Consumer
- Letztes Preisupdate
- -
- Gelistet seit
- 2024-01-09, 16:40
Bewertung für GIGABYTE GeForce RTX 4070 Ti SUPER Gaming OC 16G, 16GB GDDR6X, HDMI, 3x DP
Teilen Sie uns Ihre Meinung zu GIGABYTE GeForce RTX 4070 Ti SUPER Gaming OC 16G, 16GB GDDR6X, HDMI, 3x DP mit oder lesen Sie die Bewertungen unserer Mitglieder, Experten und anderer Websites zu dessen Varianten.-
overclockers.com: Gigabyte RTX 4070 Ti Super Gaming OC 16G Review (translate)
Nvidia’s Super cards have long been a refresh to their launch day SKUs. This year, they came out at the same price points as the cards they are replacing, offering more performance and a better value in the market. Some say it’s what the Nvidia cards should have been upon Ada Lovelace’s release back in late 2022. Fast forward to today, we reviewed one of the upper min-range SKUs in the 4070 Ti Super. At $799.99 MSRP, it comes in at the same price as the 4070 Ti (non-super) and closes the gap on the RTX 4080 ahead of it.
-
tech-critter.com: Review – Gigabyte GeForce RTX 4070 Ti SUPER Gaming OC 16G (translate)
All in all, the Gigabyte GeForce RTX 4070 Ti SUPER Gaming OC 16G delivers the performance that an RTX 4070 Ti SUPER should perform, which is great. The slight concern now is that the price for the RTX 4070 Ti SUPER Gaming OC 16G is set at RM 4709, which costs RM 219 more than the MSRP model which is priced at RM 4490. Now, a higher price is much expected for OC models like the RTX 4070 Ti SUPER Gaming OC 16G, but is it worth paying that extra RM 219 for the RTX 4070 Ti SUPER Gaming OC over the cheaper MSRP model? Well, I’d say yes but only if you’re coming from something older than the RTX 30 series or RX 6000 series.
-
techpowerup.com: Gigabyte GeForce RTX 4070 Ti Super Gaming OC Review (translate)
The Gigabyte RTX 4070 Ti Super Gaming OC is the company's middle model for the RTX 4070 Ti Super. You get a triple-slot, triple-fan cooling solution and factory overclock. Compared to the NVIDIA baseline frequency of 2610 MHz boost, the OC is rated for 2655 MHz, or +1.7%. Averaged over the 25 games in our test suite, at 1440p, we find the card only 7% faster than 4070 Ti non-Super, which is much less than expected. At 4K, the gains are slightly bigger with 10%, but it's definitely not the 15%+ jump that we got with the RTX 4070 Super. Still, these gains help make up ground against AMD's RX 7900 XT, which still remains 2% faster in a pure raster scenario. Compared to last generation's flagship, the RTX 3090 Ti, the new Super card can beat it by a small margin of 5%, which is still impressive. You're basically getting last gen's x90 Ti performance with the x70 Ti Super. Compared to RTX 4070 Super, the performance uplift is 14% and the new card is 33% faster than the RTX 4070 non-Ti non-Super, too. The fastest card from Team Red, the Radeon RX 7900 XTX, is still 16% ahead, 20% at 4K—RTX 4080 Super is designed to rival this card.
