Gigabyte GA-Z77MX-D3H TH

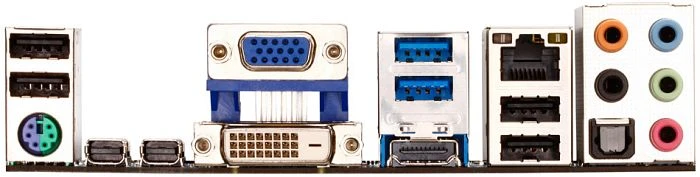

Chipset: Intel Z77 • Memory: 4x DDR3 DIMM, dual PC3-22400U/DDR3-2800 (OC), max. 32GB (UDIMM) • Extension slots: 2x PCIe 3.0 x16 (1x x16, 1x x8), 2x PCIe 2.0 x1 • External connectors: 1x VGA, 1x DVI-D, 1x HDMI 1.4, 2x Thunderbolt 1 (mini DisplayPort, Intel Cactus Ridge/DSL3510L), 2x USB 3.0, 4x USB 2.0, 1x Gb LAN (Atheros), 5x jack, 1x S/PDIF (optical), 1x PS/2 Combo • Internal connectors: 2x USB 3.0, 6x USB 2.0, 2x SATA 6Gb/s (Z77), 4x SATA 3Gb/s (Z77), 1x CPU fan 4-Pin, 2x fan 4-Pin • Audio: 7.1 (VIA VT2021) • RAID level: 0/1/5/10 (Z77) • Multi-GPU: NVIDIA 2-Way SLI (x8/x8), AMD 2-Way-CrossFireX (x8/x8), Lucidlogix Virtu MVP • power connections: 1x 24-Pin ATX, 1x 4-Pin ATX12V • Graphics: IGP • Special features: µATX, All solid capacitors • Note: Usage of PCIe 3.0 requires an Ivy Bridge CPU!

Listed since: 12.07.2012, 15:52

3 of 3 visitors recommend this product (100%).
Rating: (100%) (1 rating read | Rate product)

[Produktempfehlung] Recommend this product
Set price alert
Report error
Thank you!

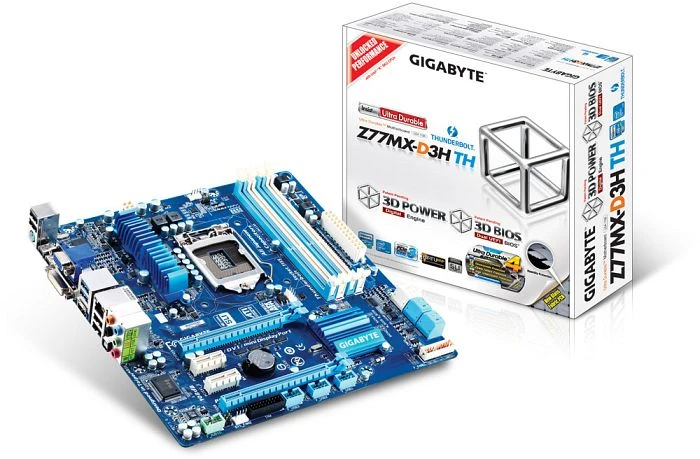

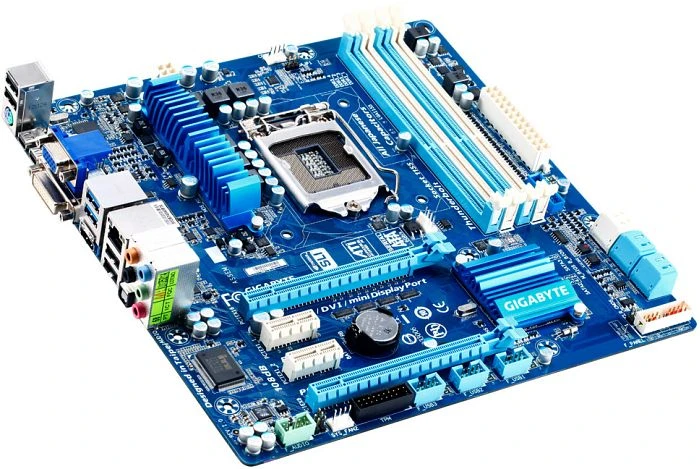

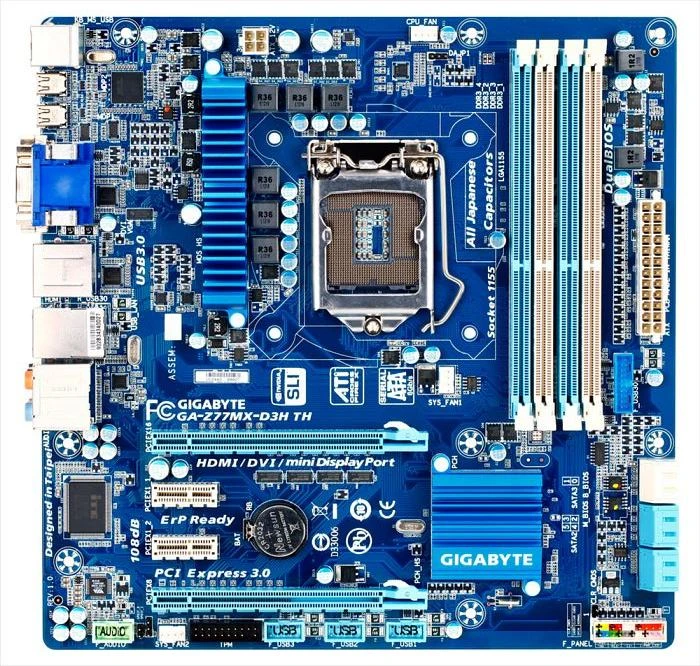

Gigabyte GA-Z77MX-D3H TH
(The images do not necessarily correspond with the actual products)
