ASUS P8Z77-V Premium (90-MIBIK0-G0EAY0KZ)

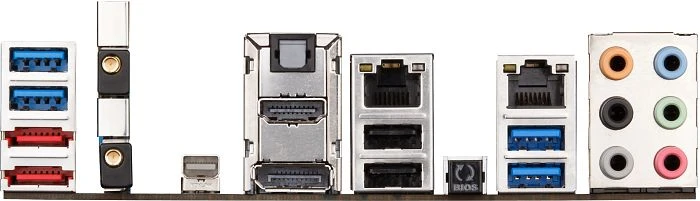

Chipset: Intel Z77 • Memory: 4x DDR3 DIMM, dual PC3-22400U/DDR3-2800 (OC), max. 32GB (UDIMM) • Extension slots: 4x PCIe 3.0 x16 (2x x16, 2x x8), 2x PCIe 2.0 x1 • External connectors: 1x HDMI 1.4, 1x Thunderbolt 1 (mini DisplayPort, Intel Cactus Ridge/DSL3310), 4x USB 3.0 (Z77/ASMedia), 2x USB 2.0, 2x eSATA 6Gb/s (ASMedia), 2x Gb LAN (Intel 82579V/Intel 82583), 6x jack, 1x S/PDIF (optical), 1x USB BIOS Flashback • Internal connectors: 2x USB 3.0 (Z77), 4x USB 2.0, 2x SATA 6Gb/s (Z77), 4x SATA 6Gb/s RAID 0/1/10 (88SE9230), 3x SATA 3Gb/s (Z77), 1x mSATA 3Gb/s (Z77 - occupied with 32GB SSD), 1x CPU fan 4-Pin, 5x fan 4-Pin • Audio: 7.1 (Realtek ALC898), DTS Connect • RAID level: 0/1/5/10 (Z77) • Multi-GPU: NVIDIA 4-Way SLI (x16/x16, x8/x8/x16, x8/x8/x8/x8), AMD 4-Way-CrossFireX (x16/x16, x8/x8/x16, x8/x8/x8/x8), Lucidlogix Virtu MVP • power connections: 1x 24-Pin ATX, 1x 8-Pin • Graphics: IGP • Special features: All solid capacitors, Bluetooth 4.0, WLAN 802.11a/b/g/n, Diagnostic LED, PLX PEX 8747 switch • Warranty: three years (processing through a dealer only) • Note: Usage of PCIe 3.0 requires an Ivy Bridge CPU!

Listed since: 03.05.2012, 11:08

1 of 2 visitors recommend this product (50%).
Rating: (69%) (Rate product)

[Produktempfehlung] Recommend this product
Set price alert
Report error
Thank you!

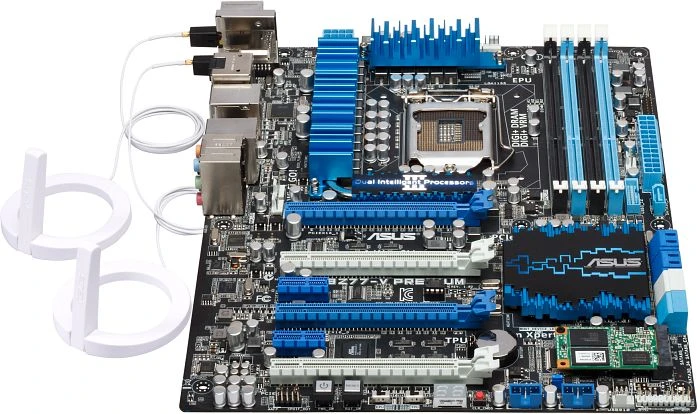

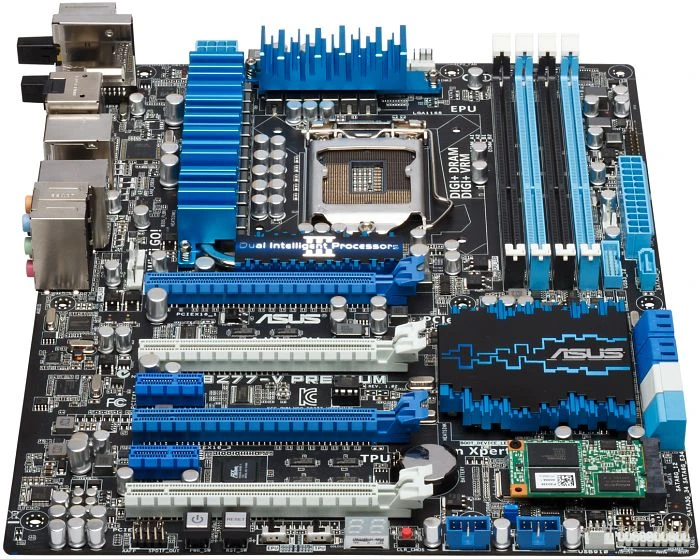

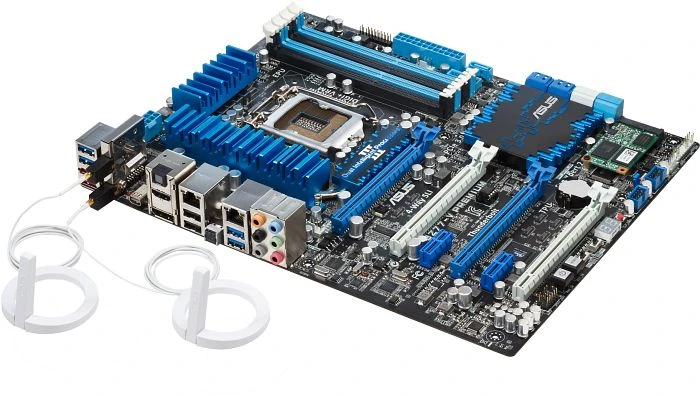

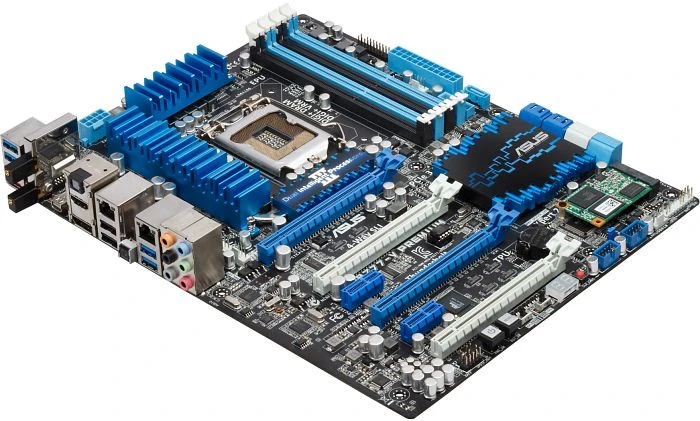

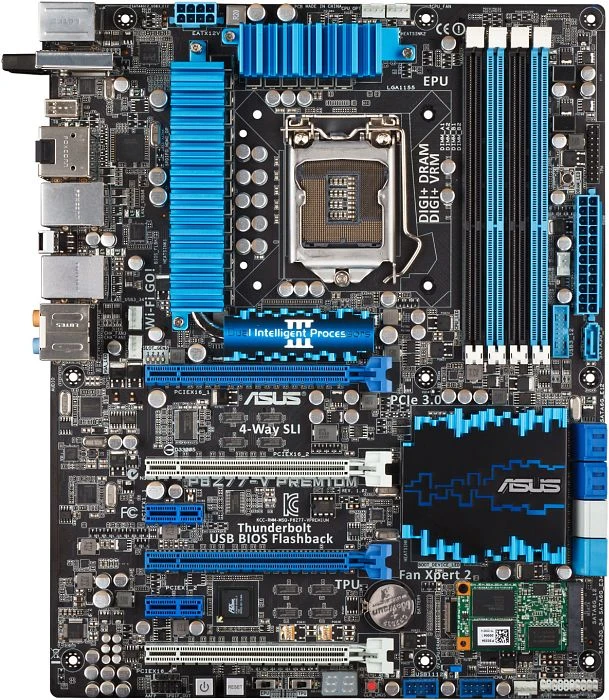

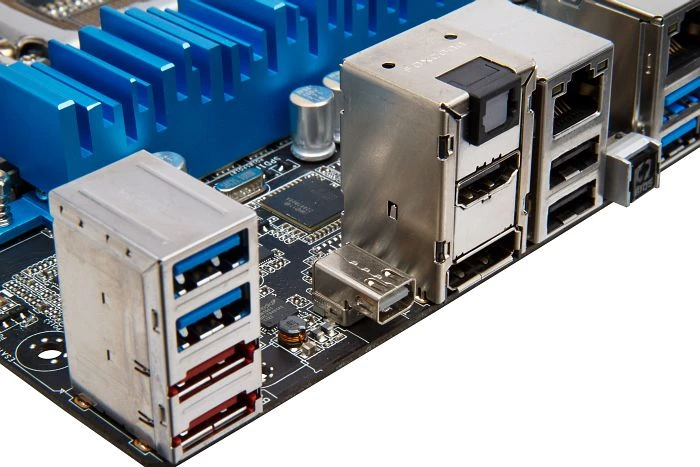

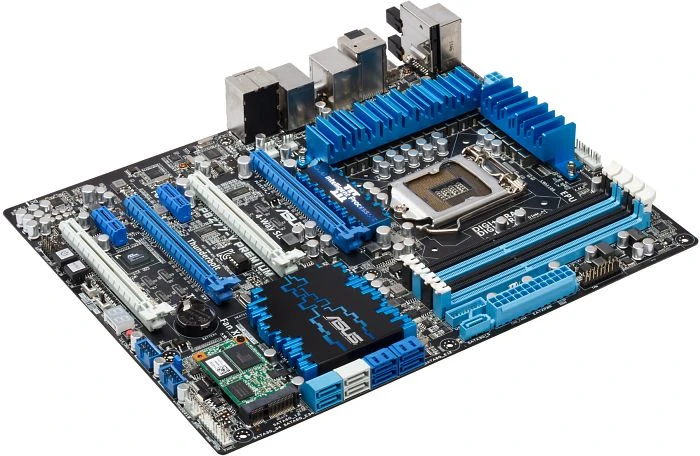

ASUS P8Z77-V Premium (90-MIBIK0-G0EAY0KZ)
(The images do not necessarily correspond with the actual products)
(multilanguage) Review: ASUS P8Z77-V Premium
(multilanguage) Preview: ASUS P8Z77-V Premium
